QIAstat-Dx Analyzer 1.0
Small but powerful modular syndromic testing system
QIAstat-Dx Analyzer 1.0 features

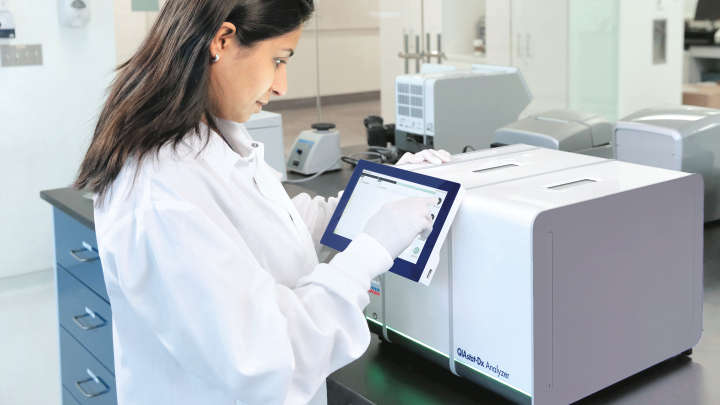

The QIAstat-Dx Analyzer is a modular and scalable system designed to work in any clinical setting and make laboratory diagnostic testing faster and easier. The system runs assay cartridges, via displayed step-by step instructions, offering an intuitive user experience.
QIAstat-Dx Analyzer 1.0 | |
---|---|
Hands-on time | Less than one minute |
Test turnaround time | 67–75 minutes (dependant on assay) |
Throughput per day (24 hr) | Up to 84 samples |
Ct values and amplification curves | Viewable for all detected pathogens |
Interface | Intuitive touchscreen |
Connectivity | Seamless integration with QIAsphere |
LIS/LIMS | Bidirectional capabilities |
Batch testing with configurable queue | Batch process 18 tests in a single run |
Epidemiology reports | Data and dashboard service through QIAsphere* |
Continuous loading + urgent testing | Each analytical module runs independently |
Remote instrument status | Available through QIAsphere* |
Remote monitoring service | Available through QIAsphere* |
QIAstat-Dx Analyzer 1.0 specifications
QIAstat-Dx Analyzer 1.0 | |
---|---|
Configuration | Modular Syndromic Testing System with one Operational Module and one Analytical Module |
Weight |
Operational Module: 5 kg (11 lbs) Analytical module: 16 kg (35 lbs) Total Weight: 21 kg (46 lbs) |
Dimensions (WxHxD) | Operational Module: 234 x 326 x 517 mm (9.2 x 12.8 x 20.4 in) Analytical module: 153 x 307 x 428 mm (6.0 x 12.0 x 16.8 in) Total Dimension: 234 x 326 x 517 mm (9.2 x 12.8 x 20.4 in) |
Power requirements | 90–264 VAC 50–60 Hz IEC 60320-1 C14 socket |
Recommended clearance | 10 cm (4 in) on each side of the unit |
Discover the assay menu
Each QIAstat-Dx panel harnesses the power of our sleek cartridge design. This technology redefines ease-of use for multiplex testing by creating a workflow with less than one minute hands-on time.
- Save time – all reagents are preloaded into the cartridge
- Reduce errors and risk of contamination – tests are performed on a single instrument solution
- Lower costs – cartridges are shipped and stored at room temperature
Get connected with QIAsphere
* Some features require a QIAstat-Dx Connectivity plan. Flexible plans are available to meet your lab's needs.
For up-to-date licensing information and product-specific disclaimers, see the respective QIAGEN kit instructions for use or user manual. QIAGEN instructions for use and user manuals are available at www.qiagen.com or can be requested from QIAGEN Technical Services (or your local distributor).
