QIAseq xHYB Viral and Bacterial Panels

For targeted viral and bacterial sequencing using hybrid capture

S_1388_7_LS_GG_QIAseq_xHYB_Microbial_Hyb_Kit_24
Do you have questions or need more information about ordering this QIAseq xHYB Panel? Our experts are here to help.

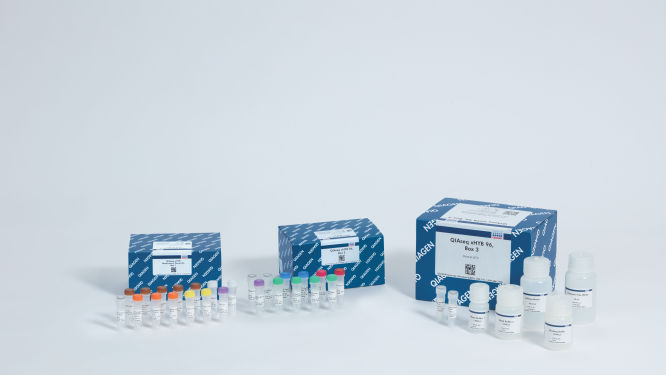

QIAseq xHYB Microbial Hyb Kit (24)

Cat. No. / ID:   334502

Contains all reagents necessary for hybrid capture and enrichment in the QIAseq xHYB Microbial workflow. Contains 6 hybrid-capture reactions for 24 samples.
$1,750.00
Log in To see your account pricing.
Kit
Hybrization Reagents
Probe Panel
Custom Probe Panel
Carrier RNA
Type
Hyb Reagents Only
Hyb&Lib Reagents
Size
24
96
The QIAseq xHYB Microbial Hyb Kit (24) is intended for molecular biology applications. This product is not intended for the diagnosis, prevention, or treatment of a disease.
QIAseq xHYB Viral and Bacterial Panels are intended for molecular biology applications. These products are not intended for the diagnosis, prevention, or treatment of a disease.
Do you have questions or need more information about ordering this QIAseq xHYB Panel? Our experts are here to help.

Features

  • Detects and sequences microbial targets with confidence, ease and efficiency
  • Multiplexes up to 384 samples when paired with the QIAseq FX DNA Library Kit
  • Eliminates the data bottleneck and reduce overall turnaround time with rapid data analysis and variant interpretation
  • Design your custom panel to target any set of microbial species of your choice

Product Details

The QIAseq xHYB Respiratory Panel includes probes for whole genome enrichment, detection and characterization of 89 separate viral targets, including: SARS-CoV-2, influenza viruses, rhinovirus, parainfluenza viruses, enterovirus and more.


The QIAseq xHYB Viral STI Panel offers high-quality targeted enrichment, detection and characterization of HBV, HIV-1 and 19 types of high-risk HPV, including types 16 and 18.


The QIAseq xHYB AMR Panel offers targeted enrichment, sequencing and detection of over 2780 unique AMR genes (6200+ AMR markers).


The QIAseq xHYB Adventitious Agent Panel offers targeted enrichment for the detection of 132 separate viral targets, including: human adenovirus, norovirus, rotavirus, influenza viruses, SARS-CoV-2, HPV, Epstein-Barr virus, HIV, Zika virus, hepatitis viruses and more.



The QIAseq xHYB HepC Panel enriches the whole genome of all HCV genotypes, allowing deep characterization of the full viral diversity. The QIAseq xHYB HepC Panel can be combined with any other QIAseq xHYB Viral and Bacterial Panel.



The  QIAseq xHYB MPXV Panel offers targeted enrichment of the whole MPXV genome, including ITRs. The MPXV Panel works with all known MPXV clades. The QIAseq xHYB MPXV Panel can be combined with any other QIAseq xHYB Viral and Bacterial Panel.


Don’t see the target you’re looking for? Build your own QIAseq xHYB Custom Microbial Panel on GeneGlobe to target any microbial species. Custom panels can be used on their own, or combined with any other QIAseq xHYB Viral and Bacterial Panel.



Performance



High-quality, single-box solution

All QIAseq xHYB Viral and Bacterial Panels come with all materials necessary for both cDNA synthesis and target enrichment of all targets. When paired with a QIAseq FX DNA Library UDI Kit you can construct sequencing-ready libraries compatible with Illumina platforms. The QIAseq xHYB Hyb&Lib Kits come with all reagents necessary for the library prep and hybrid capture of your microbial sample.


Novel probe design

Hybrid capture enriches for the target sequence while allowing tolerance for mismatches that may occur in non-annotated or emerging strains. Hybrid capture allows the efficient targeting of a panel of viral genomes or bacterial genes since the number of probes can be scaled up in a cost-effective manner.


Multiplexing

The QIAseq xHYB Viral and Bacterial Panels enable high-level multiplexing on high-throughput sequencers with up to 384 UDIs available. Any two QIAseq xHYB Viral and Bacterial Panels can be combined within a single workflow.


Data analysis

When paired with either the analysis portal on GeneGlobe or QIAGEN CLC Genomics Workbench, the panels deliver data that can be quickly analyzed. Sequence data can be used to identify variants across different samples, as well as to compare with multiple genomes – from consensus reference genomes to one of many genomes that have been uploaded from around the world. Analysis via GeneGlobe  is included with the purchase of any QIAseq xHYB Viral or Bacterial Panel.



Principle

Microbial genomes and genes are highly diverse, and this is especially true of viral genomes. Viral genomes exhibit high diversity in morphology, genome size and genomic organization, as they can be composed of DNA or RNA, and in the case of retroviruses, both. In addition, some viruses can exist as an episome or integrate into the host genome. Genome sizes for human viral pathogens can vary from a few thousand to several hundred thousand bases. Also, they can be organized in a single DNA or RNA molecule or can be segmented into several molecules as found in influenza viruses, which contain eight single-stranded RNA segments.


In addition to viral genomes, bacterial antimicrobial resistance genes are also highly diverse, reflecting the large number of antibiotic drug classes and mechanisms used for resistance. While deep sequencing is capable of detecting antimicrobial signatures, it lacks the sensitivity of targeted sequencing approaches.


To address the challenges of sequencing microbial genes and genomes, hybrid capture panels have been developed to produce high-quality microbial libraries. The hybrid capture panels are used with libraries that are generated after converting RNA to double-stranded cDNA, and then amplified and indexed using the QIAseq FX DNA Library Kit with UDIs. Hybrid capture enriches for the target sequence while allowing tolerance for mismatches that may occur in non-annotated or emerging strains. In addition, hybrid capture allows the efficient targeting of a panel of viral genomes or bacterial genes since the number of probes can be scaled up in a cost-effective manner.



Procedure

QIAseq xHYB Viral and Bacterial Panels are compatible with RNA, DNA and TNA workflows. When starting with DNA, it is possible to start with library construction using the QIAseq FX DNA Library Kit.



Converting RNA into double stranded cDNA

When starting with RNA or TNA, the QIAseq xHYB Viral and Bacterial Panel workflow begins with converting the total RNA in the sample into cDNA. The reverse transcription product is then converted into double-stranded cDNA, which is then used as the input for QIAseq FX DNA Library construction after a QIAseq Bead cleanup.




QIAseq FX DNA Library construction

Purified cDNA product is converted to Illumina-compatible NGS libraries using the QIAseq FX DNA Library Kit. The QIAseq FX DNA Library Kit will also generate libraries from genomic DNA if the sample contains it (either as total nucleic acid or isolated genomic DNA). Purified double-stranded DNA products are enzymatically sheared, the fragmented DNA is end-repaired, and an “A” is added to the 3’-end. The product is ready for adapter ligation where Illumina-platform–specific adapters are ligated to both ends of the DNA fragments. The adapters contain the necessary sequences to allow libraries to bind to the flow-cell for sequencing. Following adapter ligation, the libraries are purified using QIAseq Beads, which remove any free adapters. The libraries are then amplified to generate sufficient yields that will go into the hybrid capture reaction.




Hybrid capture

Once the pre-capture libraries are generated, the libraries are hybridized to the QIAseq xHYB probes. After an overnight hybridization, probe-target hybrids are then bound to streptavidin-coated magnetic beads and washed to remove any unbound library fragment. Enriched libraries are then amplified and prepared for sequencing on Illumina systems.




Analysis

Resulting FASTQ can be analyzed via the analysis portal on GeneGlobe or via the QIAGEN CLC Genomics Workbench. Analysis via GeneGlobe is included with QIAseq xHYB Viral and Bacterial Panels. It offers a simplified overview of the sequencing results for identification and quantification of either viral species or antimicrobial resistance genes detected in any samples. CLC Genomic Workbench is also available for a deeper analysis for taxonomic identification, variant analysis, phylogenetic trees and viral integration sites.



Applications

The QIAseq xHYB Viral and Bacterial Panels allow for the detection, sequencing and characterization of viral and AMR targets. These high-quality libraries will enable:

  • Variant detection
  • Environmental and population surveillance
  • Viral taxonomic profiling
  • Pathogen identification

Resources

Quick-Start Protocols (1)
Pretreatment of respiratory samples
Safety Data Sheets (1)
Certificates of Analysis (1)

Publications

Clinical and Genomic Epidemiology of Coxsackievirus A21 and Enterovirus D68 in Homeless Shelters, King County, Washington, USA, 2019-2021.
Cox SN; Casto AM; Franko NM; Chow EJ; Han PD; Gamboa L; Pfau B; Xie H; Kong K; Sereewit J; Rolfes MA; Mosites E; Uyeki TM; Greninger AL; Carone M; Shim MM; Bedford T; Shendure J; Boeckh M; Englund JA; Starita LM; Roychoudhury P; Chu HY;
Emerg Infect Dis; 2024; 30 (11):2250-2260 2024 Nov PMID:39447143
Highly sensitive detection of antimicrobial resistance genes in hospital wastewater using the multiplex hybrid capture target enrichment.
Baba H; Kuroda M; Sekizuka T; Kanamori H;
mSphere; 2023; 8 (4):e0010023 2023 May 24 PMID:37222510
Pathogen dynamics and discovery of novel viruses and enzymes by deep nucleic acid sequencing of wastewater.
Wyler E; Lauber C; Manukyan A; Deter A; Quedenau C; Teixeira Alves LG; Wylezich C; Borodina T; Seitz S; Altmüller J; Landthaler M;
Environ Int; 2024; 190 :108875 2024 Jul 8 PMID:39002331
