QuantiFast Multiplex RT-PCR Kits
For fast, multiplex, one-step qRT-PCR using sequence-specific probes for gene expression analysis
For fast, multiplex, one-step qRT-PCR using sequence-specific probes for gene expression analysis
Cat. No. / ID: 204956
Cat. No. / ID: 204854
QuantiFast Multiplex RT-PCR Kits enable fast and reliable quantification of up to 4 RNA targets in a single tube by multiplex, real-time one-step RT-PCR. A special blend of reverse transcriptases delivers fast and efficient cDNA synthesis. Q-bond technology and an optimized master mix promote fast, multiplex real-time RT-PCR, not only on fast cyclers with short ramping times, but also on standard cyclers. The combination of a hot start and a unique PCR buffer system in the ready-to-use master mix ensures highly sensitive qPCR on any real-time cycler without the need for optimization. Two kit formats are available: the QuantiFast Multiplex RT-PCR Kit for cyclers that require ROX dye for fluorescence normalization, and the QuantiTect Multiplex RT-PCR +R Kit for all other cyclers. For convenience, the master mix can be stored at 2–8°C.
IMPORTANT NOTE: As announced earlier, the production of the QuantiFast Multiplex RT-PCR Kit (400) and the QuantiFast Multiplex RT-PCR +R Kit (400) has been discontinued since mid-2021. Hence, these products will be available only until stocks last. Visit the product page of the successor kit to view improved features or to request a trial kit.
The QuantiFast Multiplex RT-PCR +R Kit (2000) will remain available.
For more information and FAQs on this transition, visit: www.qiagen.com/PCRresource.
QuantiFast Multiplex RT-PCR Kits reduce RT-PCR run times by up to 50%, allowing you to get results significantly faster (see figure " Significantly reduced RT-PCR times"). You can also greatly increase your sample throughput or efficiently share a cycler with other users. Amplifying control and target genes in the same reaction, instead of in separate reactions, increases the reliability of gene quantification by minimizing handling errors (see figure " Reliable relative quantification"). The special master mix supplied with QuantiFast Multiplex RT-PCR Kits allows rapid setup of multiplex reactions and delivers successful results at the first attempt, providing multiplex RT-PCR data that are comparable with singleplex RT-PCR data (see figure " Comparable results in triplex and singleplex RT-PCR").

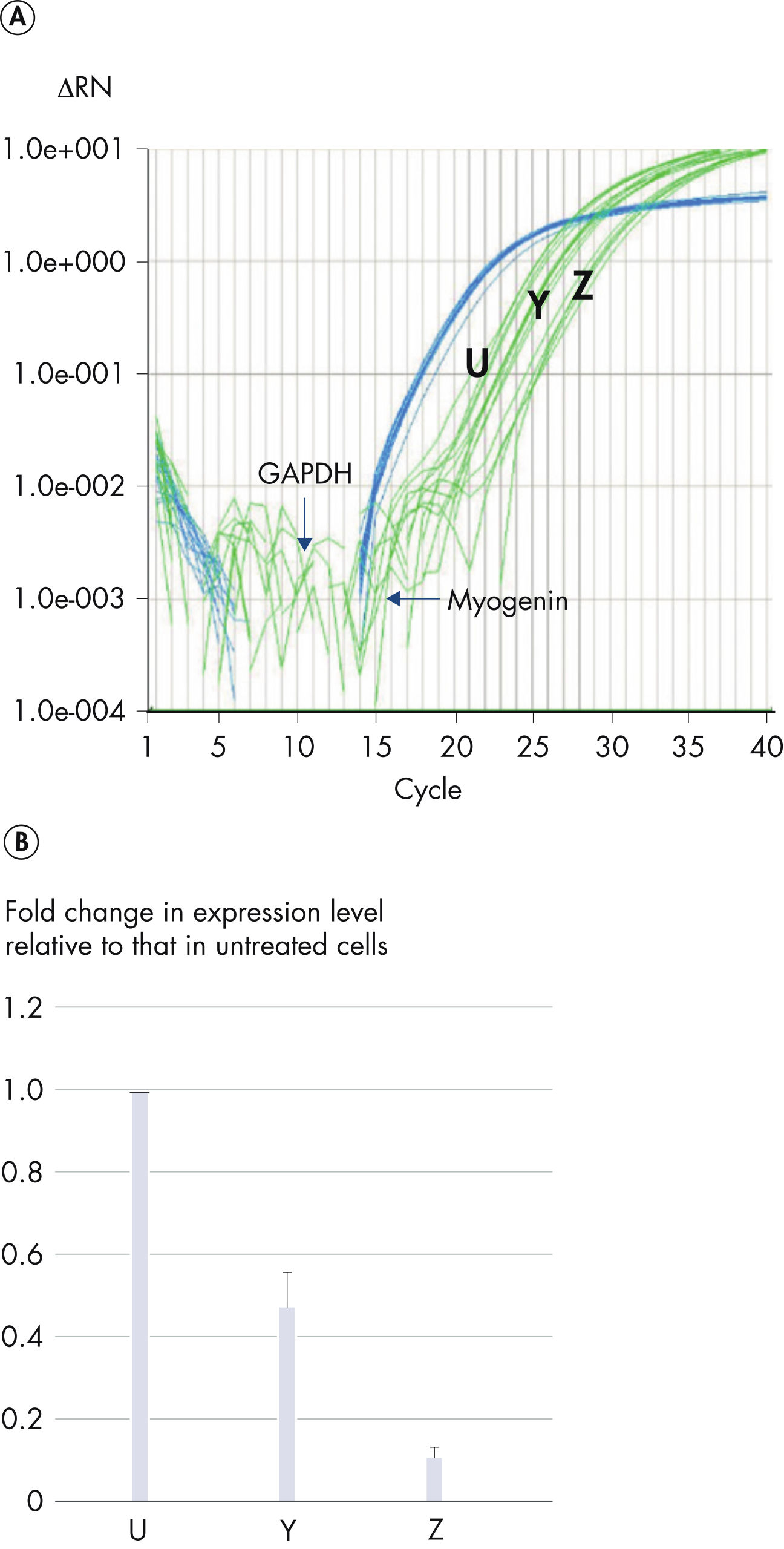

QuantiFast Multiplex RT-PCR Kits can clearly distinguish between small differences in the amount of template. Even with two-fold differences in template amount, the kits provide accurate quantification of targets of widely differing abundance. Fast results in multiplex, real-time RT-PCR of up to 4 targets are achieved without compromising performance (see figure " Uncompromised sensitivity in 4-plex RT-PCR").
QuantiFast Multiplex RT-PCR Kits deliver highly sensitive and rapid results over a wide dynamic range on both standard and fast cyclers without optimization (see flowchart " QIAGEN multiplex kits"). The specially developed fast PCR buffer contains the novel additive Q-Bond, which significantly reduces denaturation, annealing, and extension times (see figure " Fast primer annealing").

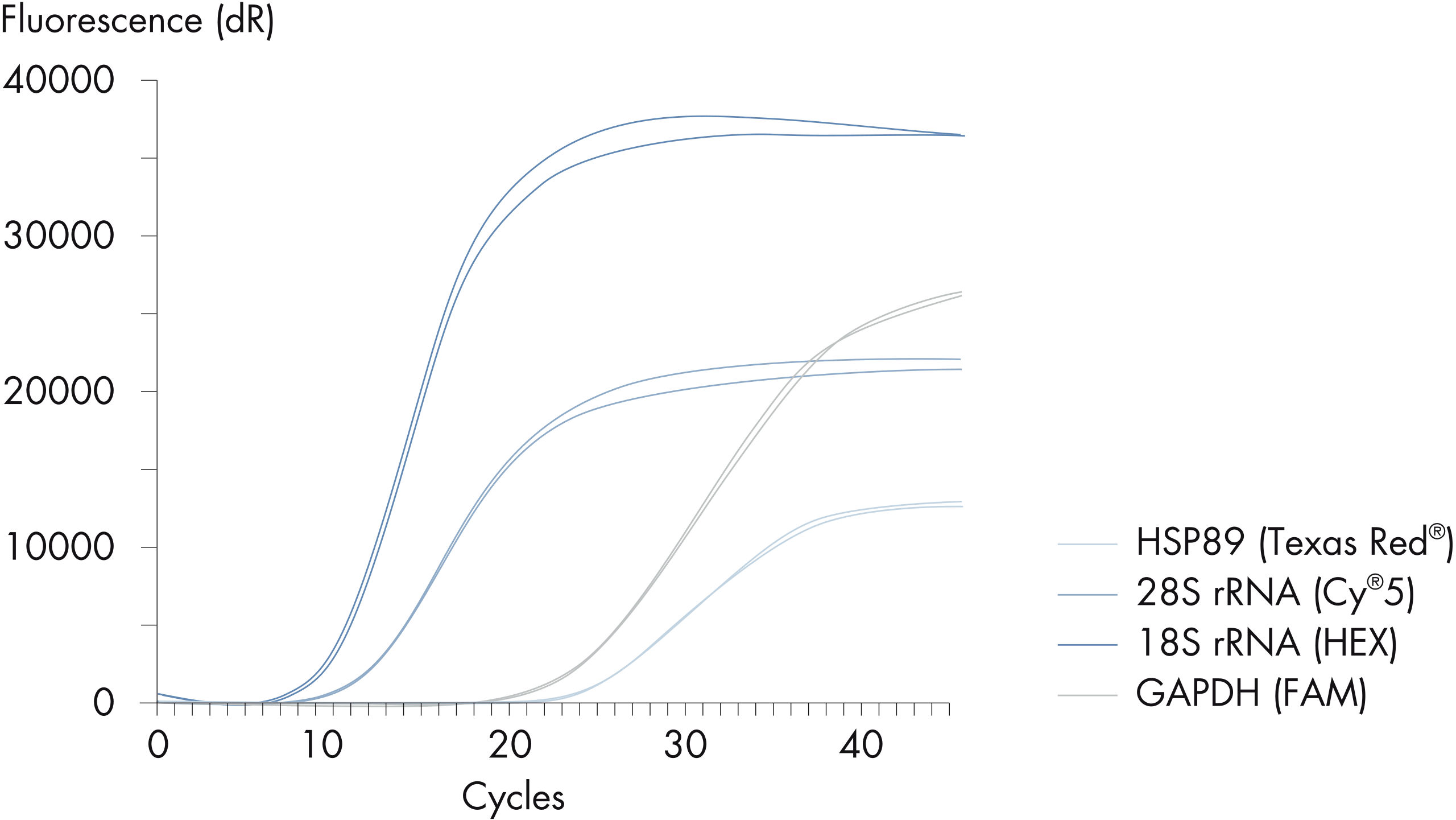

Amplifying reference and target genes in the same reaction instead of in separate reactions increases the reliability of gene quantification by minimizing handling errors. The QuantiFast Multiplex RT-PCR Buffer includes a balanced combination of K+ and NH4+ ions to promote specific primer annealing, while unique Factor MP stabilizes specifically bound primers (see figure " Unique PCR buffer"). In addition, an optimized mix of reverse transcriptases provides efficient cDNA synthesis in just 20 minutes, while HotStarTaq Plus DNA Polymerase provides a stringent hot start, preventing the formation of nonspecific products.
|HotStarTaq Plus DNA Polymerase||5 min activation at 95ºC||Set up of qPCR reactions at room temperature|
|QuantiFast Multiplex RT-PCR Buffer||Balanced combination of NH4+ and K+ ions||Specific primer annealing ensures reliable PCR results|
|Synthetic Factor MP||Reliable multiplexing analysis of up to 4 genes in the same tube|
|Unique Q-Bond additive||Faster PCR run times, enabling faster results and more reactions per day|
|ROX dye†||Normalizes fluorescent signals on Applied Biosystems and, optionally, Agilent instruments||Precise quantification on cyclers that require ROX dye. Does not interfere with PCR on any real-time cycler|
|QuantiFast RT Mix||Special blend of reverse transcriptases with high affinity for RNA||RNA can be transcribed in just 20 minutes, even through complex secondary structures|
QuantiFast Multiplex RT-PCR Kits contain ready-to-use master mixes that eliminate the need for optimization of reaction and cycling conditions. Simply add template RNA and primer-probe sets to the master mix and follow the protocol in the handbook to get fast and reliable results on any real-time cycler. Kits are available with or without ROX passive reference dye in the master mix, enabling use on virtually any real-time cycler (see table). Due to the optimized ROX concentrations, detection of even low copy numbers is achieved through automatic data analysis.
|ROX dye||Kit||Compatible cyclers|
|Supplied in master mix||QuantiFast Multiplex RT-PCR Kit||All cyclers from Applied Biosystems except Applied Biosystems 7500|
|Supplied in separate tube||QuantiFast Multiplex RT-PCR +R Kit||Applied Biosystems 7500 and cyclers from|
Bio-Rad, Cepheid, Eppendorf, QIAGEN, Roche, Agilent, and other suppliers
QuantiFast Multiplex RT-PCR Kits can be used for multiplex gene expression analysis of RNA targets on any real-time cycler. This includes instruments from Applied Biosystems, Bio-Rad, Cepheid, Eppendorf, Roche, and Agilent. For the Rotor-Gene Q and other Rotor-Gene cyclers, we recommend using the Rotor-Gene Multiplex RT-PCR Kit, which has been specially developed for fast cycling on these instruments.
|Applications||Real-time quantification of RNA targets in a multiplex format|
|Reaction type||Real-time one-step RT-PCR|
|Single or multiplex||Multiplex|
|SYBR Green I or sequence-specific probes||Sequence-specific probes|
|Real-time or endpoint||Real-time|
|Thermal cycler||Real-time cyclers dedicated for multiplex PCR (e.g., most Applied Biosystems real-time PCR cyclers, Roche LightCycler 480, and Bio-Rad iCycler iQ)|
|With or without ROX||Available with ROX in master mix or with ROX as separate vial|
Ensure PCR amplicons are as short as possible, ideally 60–150 bp. Always use the same algorithm or software to design the primers and probes. For optimal results, only combine assays that have been designed using the same parameters.
Check the functionality of each set of primers and probes in individual assays before combining the different sets in the multiplex assay. Choose compatible reporters and quenchers based on a specific instrument. See How do I select appropriate reporter and quencher combinations for multiplex PCR.
We have successfully tested up to 4 targets per reaction with the QuantiFast Multiplex RT-PCR Kit. A higher degree of multiplexing is achievable only on a limited number of PCR instruments (e.g., LightCycler 2.0). For these rare applications, further optimization of primer–probe concentration, cycling protocol, etc., might be needed.
Yes, please visit our website section 'Using endogenous control genes in real-time RT-PCR' for general information. It provides a list of relative gene expression levels for commonly used human and mouse reference genes.
We offer a set of ready-to-order control genes for use in SYBR Green based as well as probe based real-time RT-PCR.
In addition, you may want to refer to the following citations on reference gene selection for quantitative real-time PCR:
• Vandesompele J, De Preter K, Pattyn F, Poppe B, Van Roy N, DePaepe A, Speleman F : Accurate normalization of real-time quantitative RT-PCR data by geometric averaging of multiple internal control genes. Genome Biol 2002, 3:0034.
• Radonic A, Thulke S, Mackay IM, Landt O, Siegert W, Nitsche A., 2004. Guideline to reference gene selection for quantitative real-time PCR. Biochem Biophys Res Commun. 313(4): 856-62.
• Katrien Smits,Karen Goossens, Ann Van Soom, Jan Govaere, Maarten Hoogewijs, Emilie Vanhaesebrouck,Cesare Galli, Silvia Colleoni, Jo Vandesompele, and Luc Peelman Selection of reference genes for quantitative real-time PCR in equine in vivo and fresh and frozen-thawed in vitro blastocysts. BMC Res Notes. Dec 11;2:246.
Replicates in real-time PCR may have different plateau heights due to differences in the reaction kinetics for each sample. Even though replicates start out with identical template amounts, the rate at which reagents are being depleted, and the point when exponential accumulation of PCR product stops and becomes linear, differ between replicates. This will result in different plateau heights, the stage where PCR reactions have come to a halt, and little or no additional PCR product is being amplified. You can find further information in Chapter 'Quantification of target amounts' of our Brochure "Critical Factors for Successful Real-Time PCR".
The QuantiFast Buffer in the QuantiFast Multiplex RT-PCR Kit has been further optimized to enable fast multiplex one-step RT-PCR.
No. UNG treatment does not provide any advantage for the QuantiFast and Rotor-Gene PCR kits because the mastermixes do not contain dUTP. Use the QuantiTect kits if you intend to use the UNG treatment.
If the extra peaks seem irregular or noisy, do not occur in all samples, and occur at temperatures less than 70 ºC, then these peaks may not represent real PCR products and instead may represent artifacts caused by instrument settings.
Usually extra peaks caused by secondary products are smooth and regular, occur reproducibly in most samples, and occur at temperatures greater than 70 ºC. Characterization of the product by agarose gel electrophoresis is the best way to distinguish between these cases. If only one band appears by agarose gel then the extra peaks in the dissociation curve are instrument artifacts and not real products. If this is the case, refer to the thermal cycler user manual, and confirm that all instrument settings (smooth factor, etc.) are set to their optimal values.
The REST 2009 (Relative Expression Software Tool) software applies mathematic models that compensate for the different PCR efficiencies of the gene of interest and reference genes. In addition, the software can use multiple reference gene normalization to improve the reliability of result, as well as provides statistical information suitable for robust comparison of expression in groups of treated and untreated. QIAGEN offers the REST 2009 software free of charge.
The most important prerequisite for any gene expression analysis experiment is the preparation of consistently high-quality RNA from every experimental sample. Contamination by DNA, protein, polysaccharide, or organic solvents can jeopardize the success of an experiment.
Genomic DNA contamination in an RNA sample compromises the quality of gene expression analysis results. The contaminating DNA inflates the OD reading of the RNA concentration. It is also a source of false positive signals in RT-PCR experiments.
RNase contamination degrades RNA samples whichcauses low signal and false-negative results in PCR.
Residual polysaccharides, collagen, other macromolecules, and organic solvents in an RNA sample can inhibit the activity of DNase, which may interfere with DNase treatment for genomic DNA removal. These contaminants may also inhibit reverse transcriptase and DNA polymerase, leading to lower reverse transcription efficiency and reduced PCR sensitivity.
For fast purification of high-quality RNA we recommend QIAGEN’s RNeasy Kits like the RNeasy Mini Kit, the RNeasy Plus Universal Kit, or the RNeasy FFPE Kit.
Check the template quality and integrity by amplifying an endogenous control gene. Check the amplicon by QIAxcel Advanced system or agarose gel electrophoresis to show that amplification was successful.
Determine whether the gene of interest is expressed in your sample. See How can I find out if my gene of interest is express in a specific tissue type or cell line. Ensure the assay setup and cycling conditions are correct, and that the data collection channel matches the emission wavelength of the fluorescent dye used. Use a control sample in which the gene of interest is definitely expressed.
If the issue persists, please send the original run file to QIAGEN Technical Services.
The Rotor-Gene and QuantiFast Multiplex RT-PCR Kits allow reliable detection down to 10 target copies. Detection of lower copy numbers down to single copy level may also be possible; however, this depends on the stochastics when working with highly diluted samples. Additional optimization of primer/probe design is usually required.
For duplex analysis, using non-fluorescent quenchers (e.g., Black Hole Quencher®) is preferred over fluorescent quenchers (e.g., TAMRA fluorescent dye). For triplex and 4-plex analysis, QIAGEN strongly recommends using non-fluorescent quenchers. Generally, use the green channel, the yellow channel, and the orange and crimson channels to detect the least abundant target, the second least abundant target, and the two most abundant targets, respectively. For instrument-specific recommendations, please see the handbooks for the QuantiTect Multiplex PCR kit, QuantiFast Multiplex kit or Rotor-Gene Multiplex kit.
The gDNA wipeout buffer incubation step can be skipped when the total RNA is free from genomic DNA. However, the gDNA wipeout buffer is still required to be added because the reverse transcription step is optimized in the presence of components in the gDNA wipeout buffer.
Reliable HRM analysis results depend on template quality, highly specific HRM PCR kit with a saturation dye, a real-time instrument with HRM capability, and powerful software package. Factors critical for successful HRM analysis are:
For more details, please refer to the HRM Technology – FAQs and the Critical Success Factor for HRM performance.
Shorter amplification products facilitate high PCR efficiencies. Ideally, amplicon length should be less than 150 bp for optimal amplification efficiency. PCR efficiencies close to 100% are a crucial prerequisite for accurate quantification of target copy numbers in real-time PCR.
Rotor-Gene Kits are specifically developed for the Rotor-Gene Q PCR Cycler. The unique rotary system of the cycler combined with the kits’ proprietary buffer system enable ultrafast cycling. Rotor-Gene Kits do not contain ROX dye since no normalization to a passive reference is required. Also, Rotor-Gene Kits do not contain dUTP; therefore, UNG pretreatment is not possible.
Depending on primer design and copy number of target, primer-dimer may occur and its signal might be detected. Typical strategies against this are to optimize PCR conditions and/or redesign the assay.
Alternatively, an additional data-acquisition step can be added to the 3-step cycling protocol. First, determine the melting temperatures (Tm) for both the amplicon and the primer-dimer. Then, add a 15 second data-acquisition step with a temperature that is higher than the primer-dimer Tm, but approximately 3ºC lower than the specific amplicon Tm.
