QIAseq 16S/ITS Region Panels

For next-generation sequencing-based Sample to Insight profiling of bacterial and fungal communities

S_1084_5_GEN_V2

✓ 24/7 automatic processing of online orders

✓ Knowledgeable and professional Product & Technical Support

✓ Fast and reliable (re)-ordering

QIAseq 16S/ITS 24-Index I (96)

Cat. No. / ID:  333822

Adapters and sample indexes for use in conjunction with QIAseq 16S/ITS Panels to generate Illumina-compatible libraries; sufficient adapters for indexing 96 samples (4 x 24 samples)
€861.00
Log in To see your account pricing.
KitControlProduct
QIAseq 16S/ITS Index
QIAseq 16S/ITS Smart Control
QIAseq 16S/ITS Region Panel (24)
QIAseq 16S/ITS Region Panel (96)
For number of samples
96
384

✓ 24/7 automatic processing of online orders

✓ Knowledgeable and professional Product & Technical Support

✓ Fast and reliable (re)-ordering

Features

  • Interrogate specific bacterial 16S rRNA gene variable regions and fungal ITS regions
  • "Phased primers" increase base and read quality
  • Low-bioburden reagents minimize background contamination
  • DNA input as low as 1 pg to profile low-biomass samples

Product Details

QIAseq 16S/ITS Panels are the Sample to Insight solution for robust profiling of bacterial and fungal communities. The panels have been developed for sequencing 16S rRNA and ITS regions on Illumina platforms. Unlike other solutions, QIAseq 16S/ITS Panels use "phased primers" to increase the quality of reads and base calling, and eliminate the need for PhiX spike-in. In addition, QIAseq 16S/ITS Panels incorporate low-bioburden reagents to decrease background contamination, interrogate all 16S rRNA variable regions and allow low DNA input, enabling the analysis of low-biomass samples.

The QIAseq 16S/ITS Region Panels, when combined with any of the QIAseq 16S/ITS Index Kits, include all required reagents to produce libraries from extracted DNA. Region panels can be configured to target 1, 2 or 3 16S variable regions and/or ITS. To configure your QIAseq 16S/ITS Region Panel, choose a product on the "Ordering Information" tab and click "Configure".

Performance

High quality of reads and bases

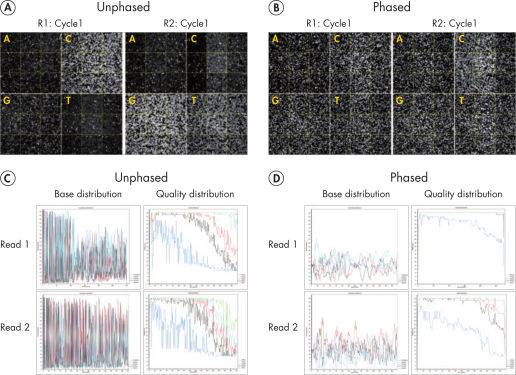

Sequencing single amplicon libraries often yields results of low quality due to the reduced diversity in base composition in the primer regions (figure  QIAseq 16S/ITS Panels employ phased primers to increases base diversity and quality scores, A and C). To overcome this issue, QIAseq 16S/ITS Panels use a "phased primer" approach (figure  Structure of phased primers used in QIAseq 16S/ITS Panels), which incorporates 0–11 additional bases to the 5’-end of the 16S rRNA or ITS primer. The use of "phased primers" results in a shift in nucleotide balance and increases base diversity, leading to an increase in quality scores (figure  QIAseq 16S/ITS Panels employ phased primers to increases base diversity and quality scores, B and D).

Efficient use of flow cell throughput

Because of the "phased primer" approach, libraries produced with QIAseq 16S/ITS Panels are sufficiently complex to eliminate the need for PhiX spike-in, thereby enabling the efficient utilization of flow cell throughput.

Low background noise

Bacterial DNA is present in every corner of our daily lives, resulting in an increased risk of contamination during handling and processing of biological samples. Furthermore, manufacturing and processing of enzymes and reagents can introduce exogenous bacterial DNA to the samples being studied. This contamination background decreases the robustness of bacterial profiling. QIAseq 16S/ITS Panels use low-bioburden reagents, which show very low levels of exogenous bacterial contamination in NTC runs (figure  The QIAseq 16S/ITS Panels have very low levels of background contamination due to the use of reagents with low bioburden).

Low DNA input

QIAseq 16S/ITS Panels can be used with a bacterial DNA input ranging from 1 pg to 1 ng, allowing users to profile bacterial communities in samples with low biomass (figure  The QIAseq 16S/ITS Panels can be used with as little as 1 pg of input DNA). For profiling fungal communities/species, QIAseq 16S/ITS Panels can detect 0.01 ng of fungal DNA in a background of 1 ng of E. coli DNA.

Multiplexing

Each panel can be used to multiplex up to 96 samples on an Illumina MiSeq run using the V3 sequencing chemistry at 2x300. The appropriate index kit is necessary to multiplex the required number of samples.

Data analysis

After sequencing, data is analyzed using QIAGEN Bioinformatics CLC Genomic Workbench and Microbial Genomics Pro Suite Module. A custom workflow, which can be further edited as needed, is available for automating FASTQ file import, sample library demultiplexing, quality controlled filtering and trimming, OUT clustering and secondary bioinformatics analysis. QIAGEN Bioinformatics CLC Genomics Workbench with the Microbial Genomics Pro Suite Module enables researchers to produce standardized reports on sample library quality metrics and organism abundance tables, providing numerous options for downstream interactive analysis of microbiome profiles and reporting on experimental results. The Microbial Genomics Pro Suite Module also includes tools for calculating diversity metrics and for comparing the microbial profiles of different samples. CLC Genomics Workbench produces publication quality figures in formats that are readily useable for researchers to present their results.

See figures

Principle

Introduction

The most common method used for profiling microbial communities is sequencing the 16S ribosomal RNA (rRNA) gene and Internal Transcribed Spacer (ITS) regions for bacteria and fungi, respectively. Because of the universal distribution and conserved nature of the 16S rRNA and ITS genes, they are well-established genetic markers used for bacterial and fungal identification and classification.

16S and ITS genes

The 16S rRNA gene consists of both highly conserved and hypervariable regions (figure  Structure of the bacterial 16S rRNA gene [top] and the fungal ITS region [bottom]). The conserved regions serve as primer binding sites for PCR amplification of the variable regions and the variable regions contain sequences that can be used for bacterial identification and classification.

The ITS region is situated between the small and large ribosomal RNA (rRNA) subunits. In eukaryotes, there are two ITS regions: ITS1 is located between the 18S rRNA and 5.8S rRNA genes, while ITS2 is located between the 5.8S rRNA and 28S rRNA genes (figure  Structure of the bacterial 16S rRNA gene [top] and the fungal ITS region [bottom]). ITS regions have been shown to have the highest probability of successful identification for the broadest range of fungi.

Benefits of NGS for 16S rRNA gene and ITS sequencing

NGS provides a culture-free method for analyzing the microbial community within a biological sample. As the throughput of modern NGS systems has increased, it is not uncommon for libraries from multiple biological samples to be multiplexed on the same sequencing run, which has in turn enabled microbiology researchers to cost-effectively analyze hundreds of microbial communities in parallel. Determining the sequence of universal marker genes such as the 16S rRNA gene and ITS with NGS is a powerful method for surveying microbial communities as it can be used to:

  1. Profile the majority of bacterial taxa residing in a sample in a single analysis
  2. Execute comparative studies of different bacterial communities
  3. Characterize bacteria that cannot be cultured
  4. Classify microbes more quickly and accurately than traditional methods
  5. Multiplex samples on the same sequencing run, providing a more cost-effective solution
  6. Study complex microbiomes

Current challenges with 16S rRNA and ITS sequencing

Difficulties with NGS of 16S rRNA genes and ITS regions include:

  1. Poor read and base calling quality as a result of reduced library complexity
  2. Inefficient use of available throughput per library due to the requirement of considerable PhiX DNA
  3. Reduced classification specificity for many bacterial taxa caused by the incomplete coverage of all 16S rRNA variable regions
  4. High background noise because of contaminated reagents

Smart Control

QIAseq 16S/ITS Smart Control is a synthetic DNA that can be used as a positive control for library construction steps as it contains the primer binding sites from Escherichia coli. The hypervariable 16S rRNA region between the primer binding sequences is replaced with artificial sequences originating from Arabidopsis thaliana (figure  Structure of the QIAseq 16S/ITS Smart Control DNA). The artificial sequences cannot be classified as bacterial or fungal, therefore any sequences that are classified are due to environmental contamination introduced during library construction.

See figures

Procedure

QIAseq 16S/ITS Panels utilize a 2-stage PCR workflow. Starting with extracted DNA from bacterial communities, the 16S rRNA variable and ITS regions are enriched in the first-stage PCR using the phased primers. After a round of bead clean up, library adapters are added onto the ends of amplicons in the second-stage PCR. A second round of bead clean up generates libraries that can be quantified and sequenced (figure  Workflow of the QIAseq 16S/ITS Panels). The recommended sequencing chemistry is V3 2x300.

See figures

Applications

Robust detection of bacterial species

The composition of a bacterial community, as based on the 16S rRNA gene, depends on the variable region analyzed. For example, Streptococcus mutans cannot be identified by sequencing variable regions V1V2, V2V3, V3V4 and V4V5. However, the comprehensive profiling of all variable regions with the QIAseq 16S/ITS Screening Panel enables the detection of this bacteria (figure  Screening a panel of variable regions provides more robust bacterial profiling compared to screening only individual variable regions).

See figures

Supporting data and figures

Resources

Application Notes (1)
Safety Data Sheets (1)
Webinars (1)
This webinar will focus on novel techniques for obtaining unbiased results in 16S rRNA gene sequencing of challenging microbiome samples.
Kit Handbooks (1)
Certificates of Analysis (1)
