PAXgene Blood RNA Kit

从稳定于PAXgene Blood RNA Tubes的全血中分离和纯化胞间RNA

S_1391_RPA_PAX1163

✓ 24/7 automatic processing of online orders

✓ Knowledgeable and professional Product & Technical Support

✓ Fast and reliable (re)-ordering

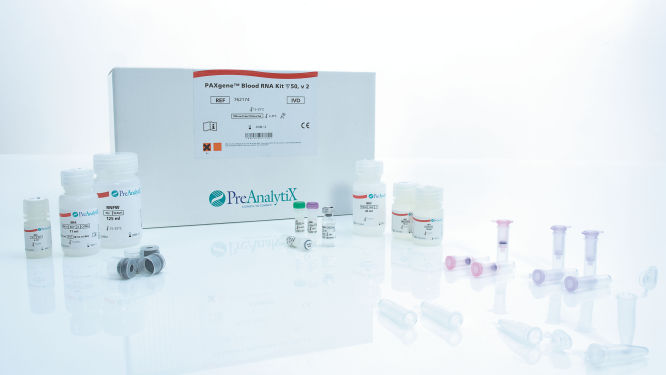

PAXgene Blood RNA Kit (50)

Cat. No. / ID:  762174

50 PAXgene Spin Columns, 50 PAXgene Shredder Spin Columns, Processing Tubes, RNase-Free DNase I, RNase-Free Reagents and Buffers. To be used in conjunction with PAXgene Blood RNA Tubes
Copy order details
On May 26, 2022, the five-year transitional period (announced in April 2017) for the new EU Regulation on In Vitro Diagnostic Medical Devices (IVDR 2017/746) will end. This requires a transition from EU IVD Directive 98/79/EC (IVDD) to IVDR for all Class A non-sterile products including nucleic acid isolation kits. The completion will be documented by the signing of a Declaration of Conformity (DoC). Once the DoC has been signed, it may take several months for the IVDR product to be commercially available due to international regulatory product registrations outside of the European Union. For those countries, PAXgene Blood RNA products previously CE-marked according to IVDD will be available after May 26, 2022, until the sell-off provision* is reached that is 26th May 2025. *Only able to sell the IVDD stock that are in the distribution center or warehouse.
These products are not available in all countries; please inquire.
PAXgene Blood RNA Kit 旨在用于体外诊断用途。

✓ 24/7 automatic processing of online orders

✓ Knowledgeable and professional Product & Technical Support

✓ Fast and reliable (re)-ordering

Features

  • 符合欧洲体外诊断98/79/EC指令
  • 与采样、稳定及纯化形成整合的系统
  • 在18–25°C条件下可稳定多至3天
  • 在–20°C或–70°C条件下至少稳定60个月
  • 分析前标准化的样本处理过程

Product Details

PAXgene Blood RNA系统包括用于血液采集、稳定和运输的PAXgene Blood RNA Tubes(由BD提供,货号762165),以及基于硅胶膜技术、离心柱法分离纯化的PAXgene Blood RNA Kit。纯化可使用离心机进行手工操作,也可在QIAcube全自动核酸纯化仪上自动运行。该产品表现卓越,确保高度可靠的RNA纯化。

Performance

PAXgene Blood RNA Tubes适用于采集全血并稳定细胞内RNA,在18–25°C条件下可稳定长达3天(参见"RNA stability at 18–25°C: FOS"和"RNA stability at 18–25°C: IL1B"),或在2–8°C条件下稳定长达5天(参见"RNA stability at 2–8°C: FOS"和"RNA stability at 2–8°C: IL1B")。当前的数据显示,细胞内RNA在–20°C或–70°C条件下可保存至少60个月。

使用PAXgene Blood RNA System纯化的总RNA纯度高,A260/A280 值在1.8和2.2之间,且基因组DNA含量不超过1.0% (w/w)。当使用30%的洗脱液时,至少95%的样品在RT-PCR中没有出现反应抑制的情况。

样品制备的平均时间为90分钟(根据12个样品的制备时间),手工操作只需40分钟。在处理95%以上样品时,2.5 ml健康人类全血的RNA产量不低于3 µg。由于产量高度依赖于供体,单次产量可能会有变动。对于单个供体,PAXgene Blood RNA System 确保产量可重复性高(参见 Reproducible and repeatable RNA purification"和" Repeatability and reproducibility of RNA yield")以及RT-PCR的可重复性高(参见"Reproducibility between users"、"Reproducibility between kit lots", 和表格),高度适合于临床诊断检测。

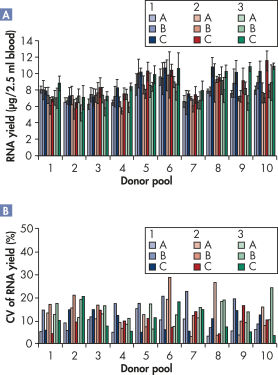

对于超过95%的样本,从2.5 ml健康人类全血中获得的RNA产量不少于3 μg。图片"RNA yield and purity — automated processing"显示的是3名实验员使用3批试剂盒自动化处理288个样本的RNA产量。由于使用的是混合血液样本而非单个的PAXgene Blood RNA Tubes,实验结果不能反映单一个体血液样本的RNA预期产量。由于产量高度依赖于供体,单个产量会有差别。

当使用多至30%的洗脱液时,至少95%的样品不会出现RT-PCR抑制。通过对RNA阴性样品(水)中beta-球蛋白和FOS转录子序列与RNA阳性样本(人类全血)进行定量RT-PCR分析,未发现使用自动化流程处理样品中有交叉污染。

使用PAXgene Blood RNA System的自动流程制备的RNA纯度高,没有RT-PCR抑制(见上文),A260/A280值在1.8 和2.2之间。经real-time PCR分析beta-肌动蛋白的序列发现,超过95%的样品的基因组DNA含量不高于1% (w/w) 。图片"RNA yield and purity — automated processing"显示了3个实验员使用3批试剂盒处理288个样品的A260/A280值和相对基因组DNA含量。

如图"Reproducibility between automated and manual protocols"所示,使用PAXgene Blood RNA System自动纯化RNA的流程提供高度可重复的RT-PCR结果,适用于临床诊断检测。

RT-PCR数据总结
检测系统  FOS/18S rRNA assay  IL1B/18S rRNA assay
数据对比  平均值  ± SD  平均值 ± SD
 (ΔΔCT)  (ΔΔCT)  (ΔΔCT) (ΔΔCT)
 同一使用者使用不同批试剂盒的可重复性
 所有使用者,第一批–第一批  0.00  0.00  0.00  0.00
 所有使用者,第一批–第二批  –0.03  0.48  –0.07  0.66
 所有使用者,第一批–第三批  –0.21  0.52  0.11  0.71
 不同使用者使用同一批试剂盒的可重复性
 所有批次,使用者A–使用者A  0.00  0.00  0.00  0.00
 所有批次,使用者A–使用者B  –0.46  0.44  –0.06  0.69
 所有批次,使用者A–使用者C  –0.31  0.60  –0.15  0.71
使用者:进行研究的实验员。
批次:本次研究中使用的试剂盒的批次。
SD:标准差。
计算平均值ΔΔCT (N = 120) 和标准差的数据来源于图"Reproducibility between users"和"Reproducibility between kit lots"。
See figures

Principle

PAXgene Blood RNA Kit用于从在PAXgene Blood RNA Tube中采集的2.5 ml人类全血中纯化总RNA,操作简单,可手工操作,也可自动化运行(参见" Manual PAXgene Blood RNA procedure"和" Automated PAXgene Blood RNA procedure")。

PAXgene Blood RNA Tubes 含有专利申请中的特定试剂,基于RNA固定的专利技术(US Patents 6,602,718 和6,617,170)。这些试剂成分可保护RNA分子,避免其被RNA酶降解,并将基因表达体内变化的改变降至最小。PAXgene Blood RNA Tubes适用于采集全血并稳定细胞内RNA,在18–25°C条件下可稳定长达3天(参见"RNA stability at 18–25°C: FOS"和"RNA stability at 18–25°C: IL1B"),或在2–8°C条件下稳定长达5天(参见"RNA stability at 2–8°C: FOS"和"RNA stability at 2–8°C: IL1B")。当前的数据显示,细胞内RNA在–20°C或–70°C条件下可保存至少60个月。

See figures

Procedure

PAXgene Blood RNA纯化操作流程简单,可手动或自动进行(参见" Manual PAXgene Blood RNA procedure"和" Automated PAXgene Blood RNA procedure")。

PAXgene Blood RNA纯化手动流程

将重悬的沉淀和蛋白酶K一起溶解在经优化的缓冲液中孵育,进行蛋白质酵解。然后应用PAXgene Shredder离心柱再次离心,匀浆细胞裂解液,并去除剩余的细胞残骸。将流过部分的上清液转移到干净的微型离心管中,加入乙醇调节结合条件,将裂解液装入一个PAXgene RNA离心柱中。快速离心后,RNA会选择性地结合到PAXgene硅胶膜上,杂质则流过。剩余的杂质通过几次高效洗涤去除。在第一次和第二次洗涤步骤之间,使用DNA酶处理膜,以去除微量残余的DNA。洗涤之后,使用洗脱缓冲液洗脱RNA并进行热变性。

PAXgene Blood RNA纯化自动流程

使用QIAcube全自动核酸纯化仪制备样品的流程与手动法相同,您可继续使用PAXgene Blood RNA Kit纯化高品质RNA。

自动化的RNA纯化流程由两个部分组成,"PAXgene Blood RNA Part A"和"PAXgene Blood RNA Part B",在两个部分之间需要短暂的手工操作。

将经离心、洗涤、重悬的核酸沉淀从PAXgene Blood RNA Tube转移到离心管中,将离心放到QIAcube全自动核酸纯化仪工作台的恒温震荡器中。实验员选择并启动菜单中的"PAXgene Blood RNA Part A"。QIAcube全自动核酸纯化仪会自动运行,直到将RNA洗脱至洗脱缓冲液中。实验员将含有已纯化RNA的离心管转移到QIAcube全自动核酸纯化仪的恒温震荡器中,选择并启动菜单中的"PAXgene Blood RNA Part B",QIAcube全自动核酸纯化仪会执行热变性。

样本平均制备时间是125分钟(基于制备12个样本的时间),手工操作时间只需约20分钟。

See figures

Applications

该试剂盒与PAXgene Blood RNA Tubes共同使用,可从全血中分离纯化细胞内RNA进行RT‑PCR。

Supporting data and figures

Specifications

FeaturesSpecifications
FormatSpin column
TechnologySilica technology
Sample amount2.5 ml
Elution volume80 µl (2 x 40 µl)
Main sample typeWhole blood
Time per runManual: 90 min/12 samples; Automated: 151 min/12 samples
Yield≥3 µg/2.5 ml sample (≥95% of all samples processed). Apparently healthy consented donors with white blood cell counts in range of 4.8 x 10^6 – 1.1 x 10^7 leukocytes/ml.
Purification of total RNA, miRNA, poly A+ mRNA, DNA or protein1.18-2.2 (A260/A280) RNA; ≤1 % (w/w) genomic DNA (≥95% of all samples processed)
ProcessingManual: centrifugation; Automated: QIAcube Connect MDx

Resources

产品介绍与指南 (3)
For collection, transport, and storage of whole blood and stabilization and purification of intracellular RNA



安全数据表 (1)
Download Safety Data Sheets for QIAGEN product components.
实验方案软件 (1)
应用说明 (2)
Typical total RNA yields from PAXgene Blood RNA Tubes processed with the PAXgene Blood RNA Kit
In situ stability of RNA in blood specimens stored for 11 years (132 months) at –20°C and –70°C in PAXgene Blood RNA Tubes



试剂盒操作手册 (1)
Paxgene Blood RNA Kit Handbook_V3_In Vitro Diagnostic use according to the Regulation (EU) 2017/746 on in vitro diagnostic medical devices

For PAXgene Blood RNA Kit, version 3
Safety Data Sheets (1)
Certificates of Analysis (1)
Brochures & Guides (2)
For collection, transport, and storage of whole blood and stabilization and purification of intracellular RNA



Gene Expression Analysis (1)
Protocol Files (1)
Application Notes (2)
In situ stability of RNA in blood specimens stored for 11 years (132 months) at –20°C and –70°C in PAXgene Blood RNA Tubes



Typical total RNA yields from PAXgene Blood RNA Tubes processed with the PAXgene Blood RNA Kit
Kit Handbooks (1)
Paxgene Blood RNA Kit Handbook_V3_In Vitro Diagnostic use according to the Regulation (EU) 2017/746 on in vitro diagnostic medical devices

For PAXgene Blood RNA Kit, version 3

FAQ

Where can I find additional information for PreAnalytiX PAXgene products?
You can find additional information relating to the PreAnalytiX PAXgene products on the PreAnalytiX website .
FAQ ID - 3515
Can the PAXgene Blood RNA System be used with animal blood samples?

The PAXgene Blood RNA System was developed for intracellular RNA isolation from human blood samples. QIAGEN offers RNA stabilization and isolation systems for animal blood. Please contact QIAGEN technical service (www.qiagen.com) for more information.

FAQ ID - 3461
Can the PAXgene Blood RNA Tubes undergo freeze/thaw cycles?
PAXgene Blood RNA Tubes can go through up to two freeze/thaw cycles with no impact on yield or mRNA stability.
FAQ ID -2471
What RNA yields are expected with the PAXgene Blood RNA kit?

Typical yields of RNA isolated from 2.5 ml human whole blood are between 4 and 20 µg. However yield is highly donor-dependent, and in some cases higher or lower yields may be achieved. At least 95% of all samples with a WBC count between 4.8 and 11.0 x 106 cells/ml of blood will yield ≥3 µg of total RNA per tube. To prevent low yields due to underfilling of the tube, see the phlebotomy FAQ and the blood collection demonstration video.

FAQ ID - 3464
Why is a blood collection set required to be used with the PAXgene Blood RNA tube?

A blood collection set is required to be used with the PAXgene Blood RNA Tube to eliminate the possibility of patient contact with the reagent in the tube, due to backflow of blood, when used in accordance with the instructions for use.

FAQ ID - 3459
What is the integrity of RNA from PAXgene Tissue fixed, paraffin-embedded (PFPE) tissue?
Like yield, RNA integrity depends on parameters, such as tissue type, period of cold ischemia, fixation time, processing protocol, age, and storage conditions of the PFPE block. For examples of the integrity of RNA in rat tissues under ideal workflow conditions, see Groelz et al., Exp Mol Pathol. 2013 Feb;94(1). For examples of the integrity of RNA from clinical samples, see Viertler et al., J Mol Diagn. 2012 Sep;14(5)
FAQ ID -3046
How long can the PAXgene Blood RNA tubes be kept frozen at –20°C or –70°C?
Currently we have data for storage at –20°C and –70°C for 96 months (In situ stability of RNA in blood specimens stored for 8 years (96 months) at –20°C and –70°C in PAXgene Blood RNA Tubes).

Long term archiving studies are ongoing. See technical note: In Situ Stability of RNA in Blood Samples Stored at –20°C and –70°C in PAXgene Blood RNA Tubes.



FAQ ID - 3463
What are possible reasons for blood draws with lower than expected blood volume?

Possible reasons for blood draws with lower than expected blood volume include: 1) The phlebotomist has not waited enough time for the blood to stop flowing into the tube. 2) The tube has "pushed back" from the needle end attached to the holder and the tube is no longer drawing. 3) Discard tube was not used. For further information see the video Collecting Specimens In PAXgene Blood RNA Tubes and Instructions for Use.

FAQ ID - 3462
Is there any chance of the PAXgene Blood RNA tube reagent going back into the patient's arm?

If used according to the instructions for use, there is no possibility of backflow during phlebotomy, and thus no possibility of reagent going into the patient’s arm.

FAQ ID - 3460
